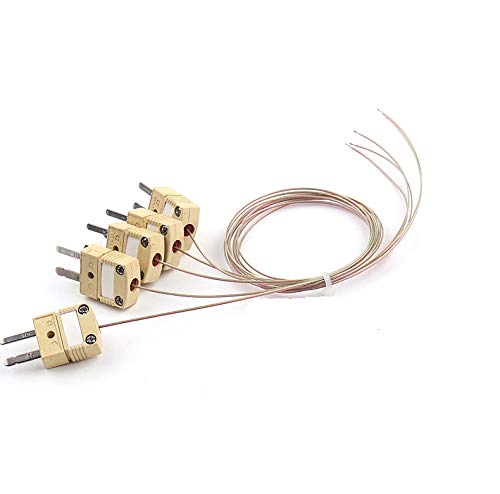

Multi-Point Chip Temperature Measurement

Multi-Point Chip Temperature Measurement

As semiconductor designs scale up with high-density chiplets, 3D stacking, and AI accelerators, thermal management is one of the biggest challenges test engineers face. A single silicon die rarely has a uniform temperature; hotspot variations across the chip surface can lead to thermal throttling, yield loss, or premature failure.

For test engineers running Automatic Test Equipment (ATE), characterization benches, or burn-in systems, obtaining precise multi-point thermal profiles is essential. Sensoten sensors deliver ultra-thin footprints and fast thermal response times to map temperatures across every zone on a chip.

Why Multi-Point Chip Temperature Measurement Matters

Measuring just one point or relying solely on internal thermal diodes often leaves blind spots. Modern test protocols require localized thermal profiling for several reasons:

  • Identifying Localized Hotspots: Compute-heavy functional blocks run significantly hotter than surrounding idle logic.

  • Evaluating Thermal Interface Materials (TIMs): Non-uniform pressure or voiding in TIMs creates thermal gradients across the die.

  • Calibrating On-Die Sensors: Internal silicon diodes require external physical temperature verification for calibration.

  • Preventing Thermal Runaway: During high-power burn-in tests, unmonitored localized heating can degrade the device under test (DUT).

How Sensoten Fits into the Semiconductor Test Workflow

Sensoten temperature measurement solutions give test engineers fine-grained visibility across the entire die area. Here is how they integrate into different phases of the testing environment:

+-----------------------------------------------------------------------------------+
|                        Semiconductor Testing Flow                                 |
+--------------------------+------------------------------+-------------------------+
|    Wafer-Level Testing   |    Package Characterization  |    Burn-In & Reliability|
+--------------------------+------------------------------+-------------------------+
| * Multi-point probe grid | * Real-time hotspot mapping  | * Continuous logging    |
| * Low thermal mass       | * Sub-die gradient analysis  | * Thermal chamber sync  |
| * Fast transient response| * Dynamic thermal profiling  | * Stress monitoring     |
+--------------------------+------------------------------+-------------------------+

  • Wafer-Level & Die Characterization: Thin-profile Sensoten sensors can be routed into tight test fixtures and probe stations without interfering with mechanical contact mechanisms or signal lines.

  • Package Thermal Mapping: Placing an array of Sensoten sensors at the center, edges, and corners of a die allows engineers to build a detailed temperature map.

  • Burn-In & Stress Reliability Testing: High-channel density data acquisition with Sensoten sensors enables continuous tracking of every chip under test during long-duration thermal cycling.

Step-by-Step: Measuring Multi-Location Chip Temperatures with Sensoten

1. Sensor Positioning & Die Mapping

Select critical test locations across the chip layout: center (maximum expected temperature $T_{\text{center}}$), corners ($T_{\text{corner}}$), and power delivery regions. Secure Sensoten sensors directly using thin, high-conductivity thermal adhesive to ensure minimal thermal contact resistance.

2. Integrating with Data Acquisition (DAQ)

Connect the Sensoten sensor array to your ATE readout channels or high-precision DAQ instrumentation. Ensure wiring paths remain clear of high-frequency signal traces to reduce electromagnetic noise.

3. Thermal Load Execution

Apply functional test patterns, clock frequencies, and voltage scaling to drive the chip through operational states. Monitor real-time transient temperature spikes across each sensor zone.

4. Calculating Virtual & Average Die Temperatures

To calculate an accurate weighted virtual chip temperature ($T_{\text{vj}}$) from your center and corner sensors, apply the standard two-point sinusoidal gradient approximation:

$$T_{\text{vj}} = \frac{1}{3} \left( 2 \cdot T_{\text{center}} + T_{\text{corner}} \right)$$

Key Benefits for Test Engineers

Feature Engineering Advantage
Micro-Footprint Design Fits inside tight socket lids and multi-chip module (MCM) test heads.
High Multi-Channel Scalability Maps dozens of local thermal points across single dies or multi-chiplet setups.
Fast Thermal Response Captures transient thermal spikes during sudden voltage or frequency shifts.
High Precision & Repeatability Delivers consistent temperature tracking across thousands of DUT cycles.

By integrating Sensoten products into your semiconductor test environment, you get the precision needed to eliminate thermal blind spots, validate thermal models, and ensure high yield for next-generation chips.
